Feeds cable aiding up to 200 lbs (90.7 kg) of force
Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation
Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces
Adjustable legs to fit onto tray width sizes of 18"" (457.2 mm) to 36"" (914.4 mm)

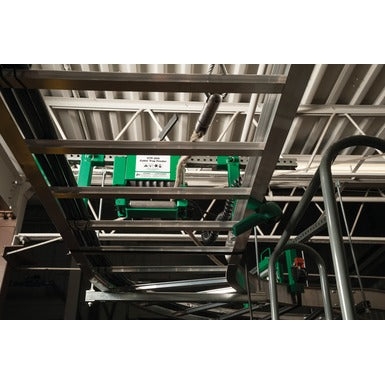

Over-Tray mounting systems allows cable to be placed in tray without taking space up

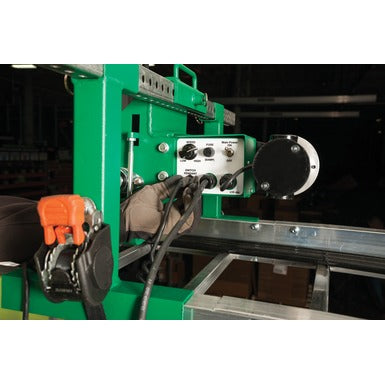

Safely control the CTF-200 up to 8' (2.4 m) away with a pendant
Specifically designed drive roller to safely and evenly grab cable
Quick release system utilizes 360° swivel and no loose pieces to easily remove cable
Cam lever system offers a quick clamping mechanism once pulling grip passes through
Designed and assembled in USA
Specifications
Application
Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90° bends, vertical rises and drops, and on straight runs.
Cable Capacity
Up to 2'' (50.8 mm) in outer diameter
Height
14-1/4'' (362 mm)
Length
42-3/4'' (1085.9 mm)
Overall Height
14-1/4'' (362 mm)
Overall Length
42-3/4'' (1085.9 mm)
Pulling Force
200 lb (90 kg)
Roller Opening Size
0''- 2'' (0 mm - 50.8 mm)
Weight
Feeder: 57 lbs (25.9 kg)
Weight
Mounting System: 12 lbs (5.4 kg)
Width
4-1/4'' (108 mm)
Disclaimer
This is a reconditioned product and is in
full operational condition. Photo may not represent the actual product which may or may not contain some
cosmetic blemishes
that do not interfere with functionality. We offer a
90-day operational warranty
on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
