Baileigh RDB-350 Programmable Tube Bender - Reconditioned

Baileigh RDB-350

Reconditioned

90-Day Operational Warranty

Out of stock

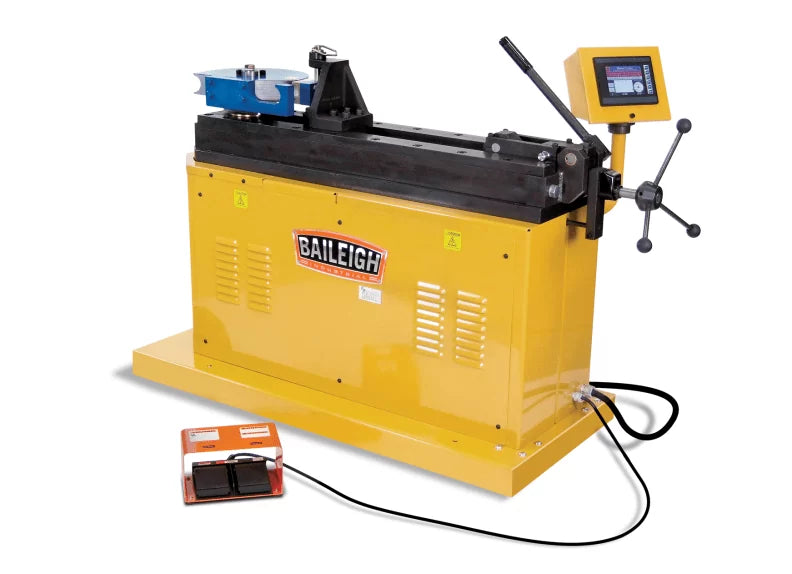

Baileigh RDB-350 Programmable Tube Bender

The RDB-350-TS is Baileigh Industrial's top tube bender, designed and made in the USA to handle production at any shop. With a bending speed of 180° in 16 seconds and a quick-release die system, it increases efficiency and saves time.

Capacity of 2.5in schedule 40 pipe and 3in tube with .187in wall thickness. 24in center line radius maximum. Bends to 360° in one shot, both left and right. You can program the desired angle, material spring back, and bend speed for easy repeatability. Programmer can also keep track of rotational orientation. 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine. Internal memory can store up to 170 programs of 10 bends per program. Unlimited program storage/backup via the micro SD port (standard 2CB SD card). Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs.

Specifications

Minimum CLR: 0.25in
Minimum OD0.24in
Mild Steel Solid Rod: 1.5in  Mild Steel Pipe Schedule 40: 2.5in
Mild Steel Round Tube Wall: 3in
Mild Steel Square Tube (Wall):3in
Stainless Steel Pipe Schedule 402in
Stainless Steel Round Tube Wall3in
Chromolly Round Tube Wall: 2.5in
Aluminum Round Tube Wall: 3.5in

Shipping Weight: 1435.0 lb
