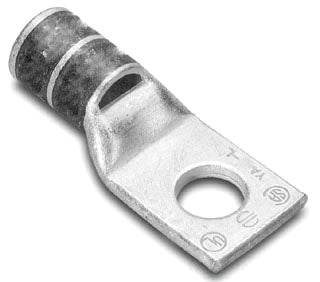

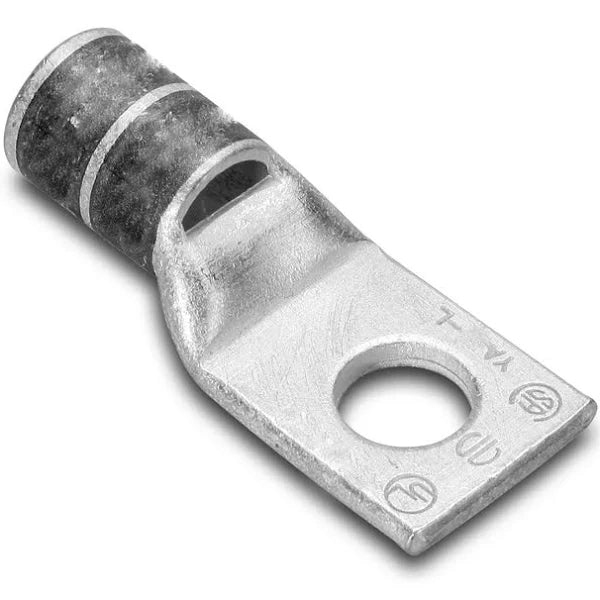

Burndy YA25L2BOX Copper Compression Lug

Burndy YA25L2BOX

Reconditioned

1 Year Operational Warranty

Out of stock

Burndy YA25L2BOX Copper Compression Lug, 10 Per Box - New Surplus

Description:

Pad Size:

 0.75 Inch W x 0.12 Inch Thick

Number of Pad Holes:

 1

Stud Size:

 1/4 Inch

Color:

 Pink

Die Index:

 12/348

Material:

 Electro-Tin-Plated Copper

Overall Length:

 1.84 Inch

Approval:

 UL, CSA

Additional Information:

 RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered

Catalog Number:

 YA25L2BOX

Brand Name:

 HYLUG[TM]

Model:

 YA-L

Voltage Rating:

 600 V to 35 kV

Conductor Material:

 Copper

Conductor Size:

 100 (Navy), 1/0 AWG Stranded (Code)

Barrel Type:

 Short, Skived, Standard, Straight

Barrel Length:

 0.88 Inch

CATALOG DESCRIPTION:

 CU COMP TERMINAL CODE COND, BVL ENTRY, 1 HOLE W/INSPWINDOW, 1/0 AWG CODE, 100 NAVY, 600 V-35 KV, 1/4" STUD, STANDARD BARREL, TIN PLATED, PINK, 12 OR 348 INDEX

Category:

 Large Terminals & Connectors

Full Technical Description:

 Electro-Tin Plated Copper Material; Pink Color; 1.84 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 100 (Navy), 1/0 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 12/348 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L Model

Manufacturer:

 Burndy Products

Product Description:

 Burndy YA25L2BOX 1/0 STR SHORT 1/4 COPPER LUG

Proposition 65 Warning (CA):

 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Sub-Category:

 Compression Cable Lug

UPC 12 Digit:

 781810313251

Shipping Weight: 6.0 lb
