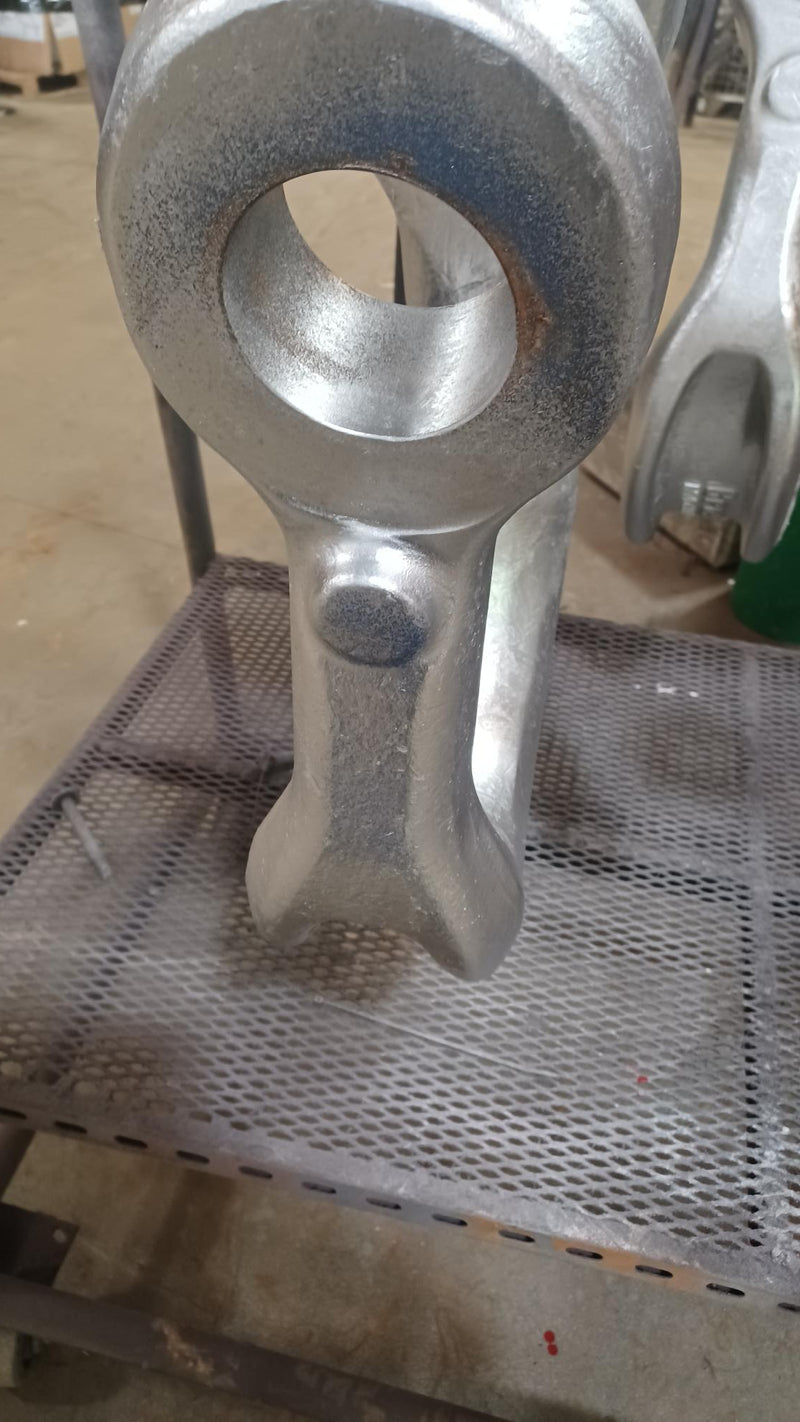

Crosby 1022110 G2160BNC 125 Ton Wide Body Sling Shackle - Reconditioned

Crosby 1022110

Reconditioned

1 Year Operational Warranty

15 in stock

Crosby 1022110 G2160BNC 125 Ton Wide Body Sling Shackle with One year Operational Warranty - Reconditioned

Description:

Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble

Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings

Can be used to connect synthetic web slings, synthetic round slings or wire rope slings

All sizes Quenched & Tempered for maximum strength

Forged alloy steel from 75 through 300 metric tons

Proof tested as follows:

75 metric tons and 200-300 metric tons: 2 x WLL

125 metric tons: 1.6 x WLL

All ratings are in metric tons, embossed on side of bow

G-2160E, (75t and larger), bows are furnished Dimetcoted, and pins are Dimetcoted, then painted red

Shackles are RFID equipped

Approved for use at -40° C (-40° F) to 204 degrees C (400° F)

Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4 degrees F)

All 2160E shackles are individually proof tested and magnetic particle inspected; Crosby certification available at time of order

Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order

Shackles have DNV Type Approval to Rules for Certification of Lifting Appliances, and are produced in accordance with DNV MSA requirements; databook is provided that includes required documents:

Serialization / Identification

Material Testing (physical / chemical / Charpy)

Proof Testing

Look for the Red Pin®... the mark of genuine Crosby quality

MPN: 1021509

Model: G-2160E

Size: 6.8"

Type: Wide Body

Material: Alloy Steel

WLL (tons): 125

WLL (lbs): 275,000

Safety Factor: 5:1

Overall Length: 23.00"

Overall Width: 15.47"

Throat Opening: 5.12"

Pin Diameter" 3.15"

Approx. Weight (lbs): 190

  .

Shipping Weight: 250.0 lb
