Greenlee 6001 Super Tugger Power Cable Puller with 6500lb Capacity & Force Guage - New Surplus
Greenlee 6001
New Surplus
Ready to Ship in 1 - 2 Business Days
Out of stock
Product Description

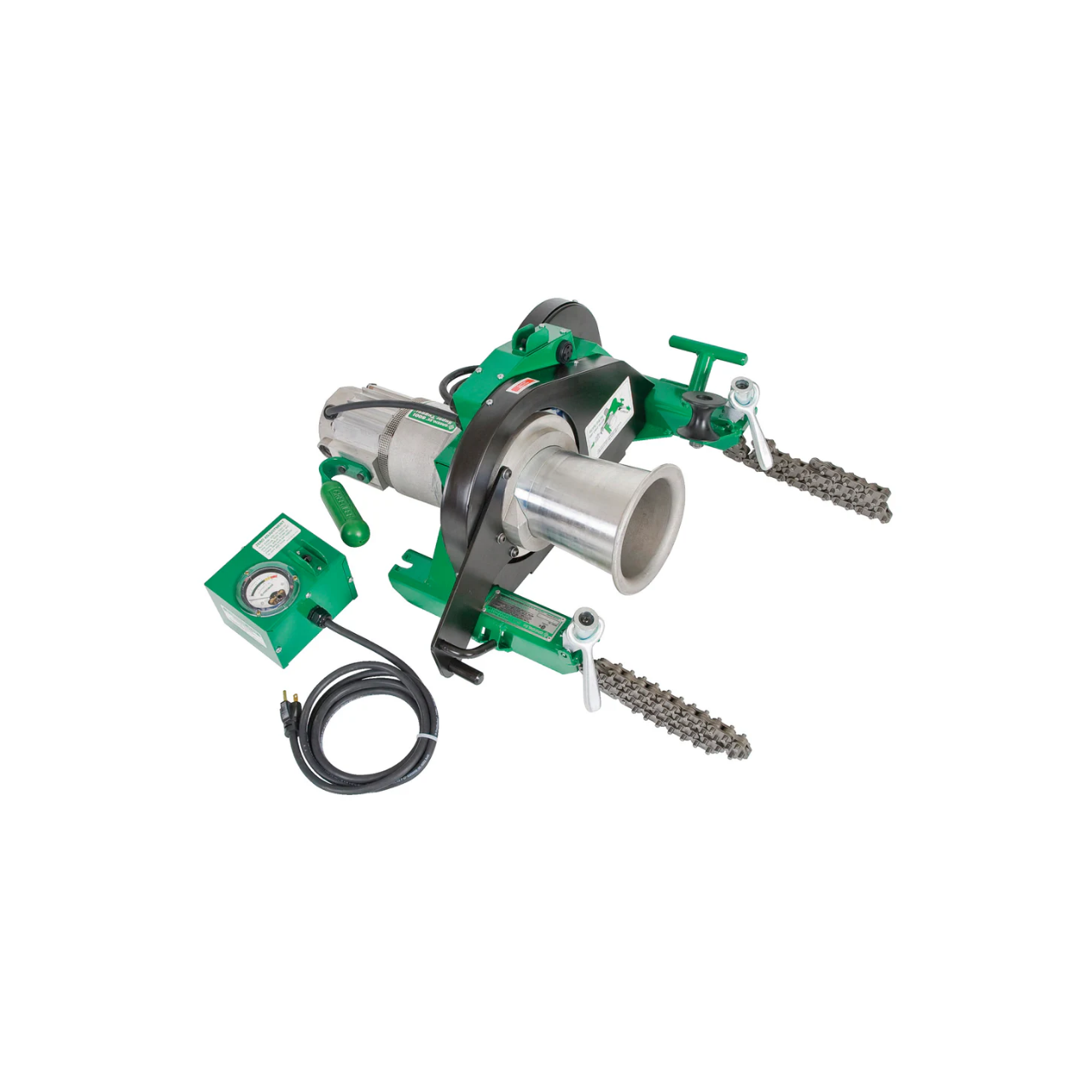

Greenlee 6001 Super Tugger & Force Gauge
The Greenlee Super Tugger cable puller is designed to pull cable through conduit and in tray, developing a maximum pulling force of 28.9 kN (6500 lb). It features a unique floor mounting attachment for quick, reliable setup and leaf-type mounting chains that won't twist when tightening. The heat-treated steel serrated gripper feet ensure secure mounting to conduit.
Included is a Force Gauge to constantly monitor the pull, and a right-angle sheave that allows the operator to stand out of the direct line of force. For added safety, the Super Tugger has an audio alarm high force warning, and a circuit breaker shut off at maximum force. The tapered capstan and patented rope guidance system provide better control of the rope when feeding onto the capstan.
Specifications
| Weight | 41.7 kg (92 lb) |
| Length | 52.7 cm (20-3/4 inch) |
| Width | 57.2 cm (22-1/2 inch) |
| Height | 30.5 cm (12 inch) |
| Power | 120/220 VAC, 50/60 Hz, 17/7.5 amps, GFCI-protected circuit |
| Maximum Pulling Force | 28.9 kN (6500 lb) |
| Speed (No Load) | 5 m/min (16.5 ft/min) |
| Speed (8900 N / 2000 lb) | 3.4 m/min (11 ft/min) |
| Speed (17.8 kN / 4000 lb) | 2.3 m/min (7.5 ft/min) |
| Duty Cycle (0–5000 lb) | Continuous operation |
| Duty Cycle (5000–5500 lb) | 15 minutes on/15 minutes off (alarm will sound) |
| Duty Cycle (5500–6500 lb) | 5 minutes on/15 minutes off (alarm will sound) |
| Pulling Rope Average Breaking Strength | 115.6 kN (26,000 lb) minimum |
Shipping Weight: 110.0 lb
