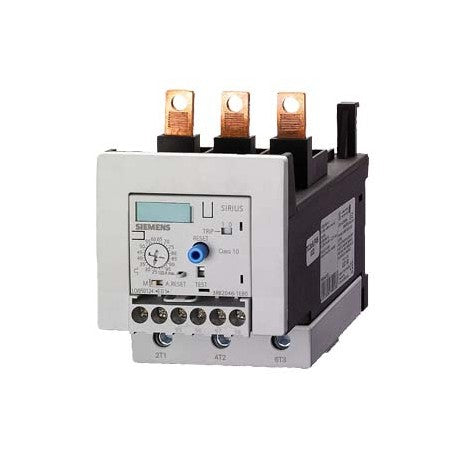

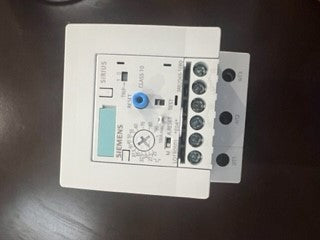

Siemens 3RB2046-1EB0 Overload Relay

Siemens 3RB2046-1EB0

Reconditioned

1 Year Operational Warranty

Out of stock

Siemens 3RB2046-1EB0 Overload Relay, 1000 V, Screw Mount-New Surplus

Ready To Ship Next Business Day

The 3RB20 and 3RB21 solid state overload relays up to 630 A with internal power supply have been designed for inverse time delayed protection of loads with normal and heavy starting (see technical information LV 1 T, "Function") against excessive temperature rises due to overload, phase unbalance or phase failure. An overload, phase unbalance or phase failure result in an increase of the motor current beyond the set rated motor current. This current rise is detected by the current transformers integrated into the devices and evaluated by corresponding solid state circuits which then output a pulse to the auxiliary contacts. The auxiliary contacts then switch off the load by means of a contactor. The break time depends on the ratio between the tripping current and current setting Ie and is stored in the form of a long-term stable tripping characteristic.

SIRIUS Overload Relay, Solid State, 1NO-1NC Contact Form, 100 A at 1000 VAC Contact, 3 Pole, Contactor Mount, Threaded Terminal, IP00 Enclosure, -25 to 60 deg C Temperature Rating, 106 mm H x 70 mm W x 124 mm D Dimensions

SPECIFICATIONS

Type

:

Solid State

Frequency Rating

:

50/60 HZ

Contact Form

:

1NO-1NC

Contact Rating

:

100 A at 1000 VAC

Number of Poles

:

3

Mounting Type

:

Contactor

Terminal Type

:

Threaded

Enclosure Type

:

IP00

Temperature Rating

:

-25 to 60 deg C

Dimensions

:

106 mm H x 70 mm W x 124 mm D

Shipping Weight: 3.0 lb
