Siemens MT0350A

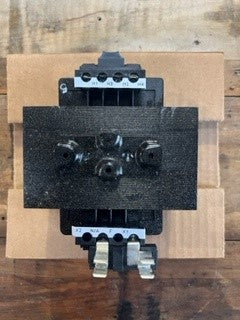

Siemens MT0350A, Control Power Transformer, 350Va- New Surplus

Ready To Ship Next Business Day

Siemens Control Power Transformer, Class MT, 240/480 VAC Primary, 120 VAC Secondary, 350 VA Power, 50/60 Hz Frequency, 1 ph, 0.29 A Maximum, Screw Connection, Slotted Mounting, Epoxy Insulation, IP20 Enclosure, 55 deg C, 4.47 in H x 4.5 in W x 5.6 in D Dimensions.

FEATURES

Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)

Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments

Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit

Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring

Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout

Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages

Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency

Insulation materials are of the highest rating available for the temperature class

Robust design

240/480, 230/460, 220/440 VAC primary voltage

120/115/110 VAC secondary voltage

0.29 A max at 240 VAC
