Burndy YAV10T4BOX Copper Compression Lug, Box of 600 - New Surplus

Burndy YAV10T4BOX

New Surplus

Out of stock

Burndy YAV10T4BOX Copper Compression Lug, Box of 600  -  New Surplus

Description:

Approval:

 UL, CSA

Additional Information:

 RoHS Compatible; Dimension 1.17 Inch L x 0.55 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch

Catalog Number:

 YAV10T4BOX

Brand Name:

 HYLUG[TM]

Model:

 YAV BOX

Type:

 Beveled, Heavy Duty

Minimum Conductor Size:

 14 AWG Stranded, 12 AWG Solid/Stranded

Maximum Conductor Size:

 10 AWG Solid/Stranded

Insulation Type:

 Non-Insulated

Stud Size:

 3/8 Inch

CATALOG DESCRIPTION:

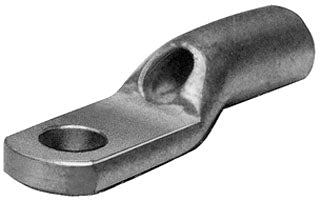

 COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, 12-10 AWG, 3/8" STUD, SHORT BARREL, TIN PLATED.

Category:

 Large Terminals & Connectors

Full Technical Description:

 Beveled, Heavy Duty Type; 14 AWG Stranded, 12 AWG Solid/Stranded min. Conductor Size; 10 AWG Solid/Stranded Max. Conductor Size; UL, CSA Approval; 3/8 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.17 Inch L X 0.55 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; YAV BOX Model

Manufacturer:

 Burndy Products

Product Description:

 Burndy YAV10T4BOX 12-10 RING LUG

Proposition 65 Warning (CA):

 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Sub-Category:

 Ring Lug

UPC 12 Digit:

 781810541807

Product Sheet

Shipping Weight: 7.0 lb
