Panduit PV10-10R-L Ring Terminal

Panduit PV10-10R-L

Reconditioned

90-Day Operational Warranty

Low stock: 4 left

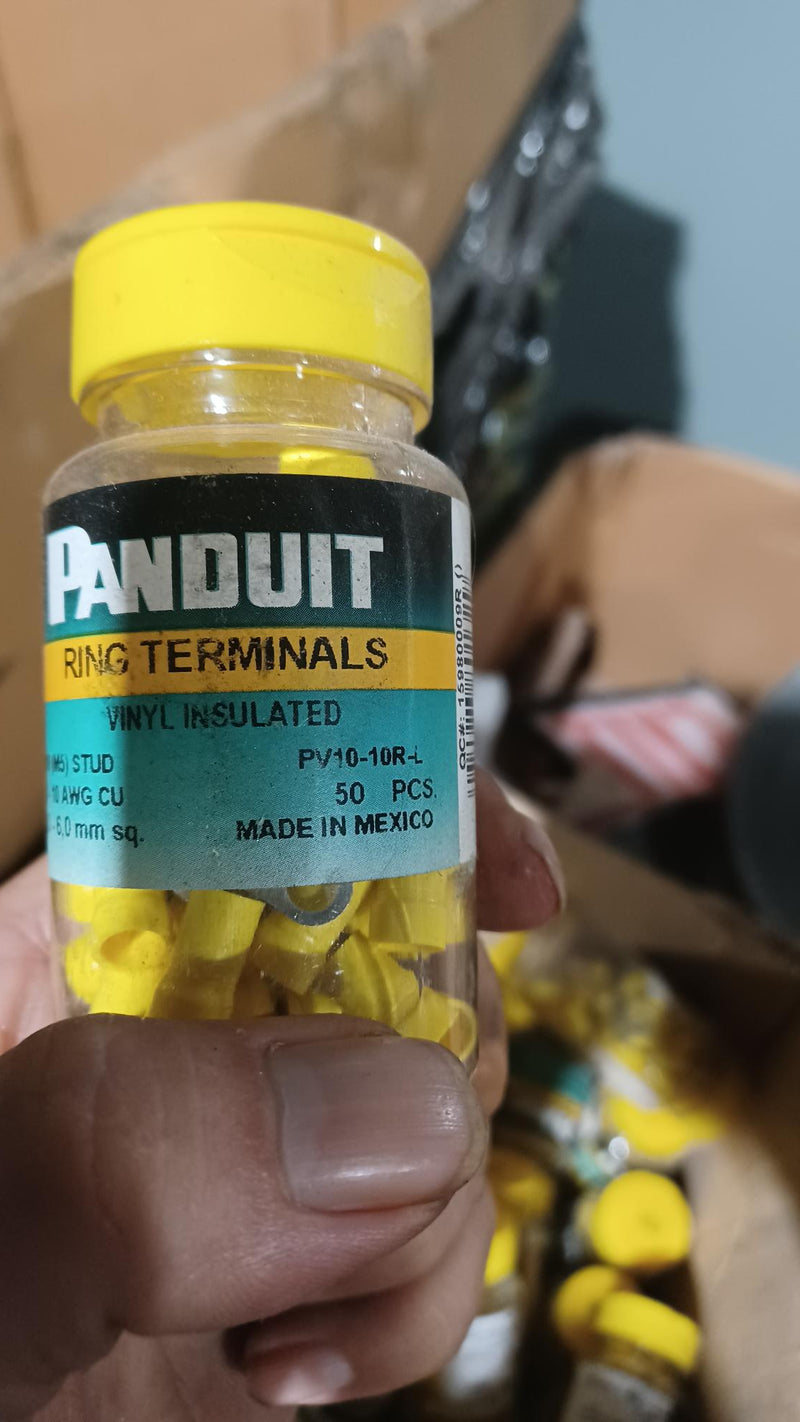

Panduit PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50 New Surplus

Ready to Ship Next Business Day

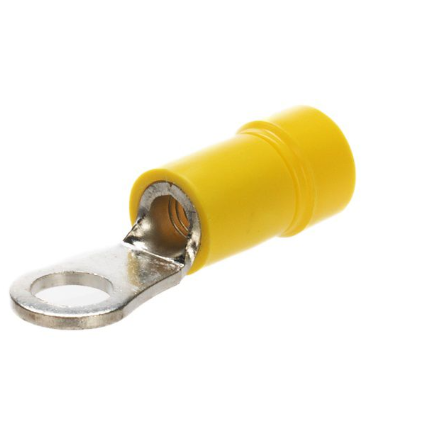

The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extended barrel insulation provides protection and strain relief when crimped.

Specifications

Stud Hole Size (In.)

#10

Stud Hole Size (mm)

5

Stud Size

#10

Insulation Material

Vinyl

Maximum Copper Conductor Size (AWG)

#10

Maximum Wire Size (AWG)

#10

Minimum Wire Size (AWG)

#12

Minimum Copper Conductor Size (AWG)

#12

Maximum Metric Conductor Size (mm²)

6

Minimum Metric Conductor Size (mm²)

4

Wire Strip Length (In.)

5/16

Wire Strip Length (mm)

7.9

Standards Met

cULus Listed 587H E52164, CSA Certified LR31212

Base Material

Copper

Maximum Voltage (V)

600

Maximum Voltage (kV)

0.6

Finish/Coating

Tin-Plated

Color Code

Yellow

Barrel Type

Funnel

Flammability Rating

UL94V-0

Maximum Operating Temperature (°C)

105

Maximum Operating Temperature (°F)

221

Maximum Wire Insulation Diameter (In.)

0.23

Maximum Wire Insulation Diameter (mm)

5.8

Seam Type

Brazed

Sub Brand

Pan-Term®

Overall Length (In.)

1.05

Overall Length (mm)

26.7

Overall Width (In.)

0.31

Overall Width (mm)

7.9

Tongue Thickness (In.)

0.04

Tongue Thickness (mm)

1

Tongue Width (In.)

0.31

Tongue Width (mm)

7.9

Packaging Type

Bottle

Product Type

Ring Terminal

For Use With

CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

Part Features

• Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength

Bay 3

Shipping Weight: 5.0 lb
