Appleton TB68 Conduit Body 2 in. - New Surplus

Appleton TB68

New Surplus

Low stock: 6 left

Appleton TB68 Conduit Body 2 in. - New Surplus

Description:

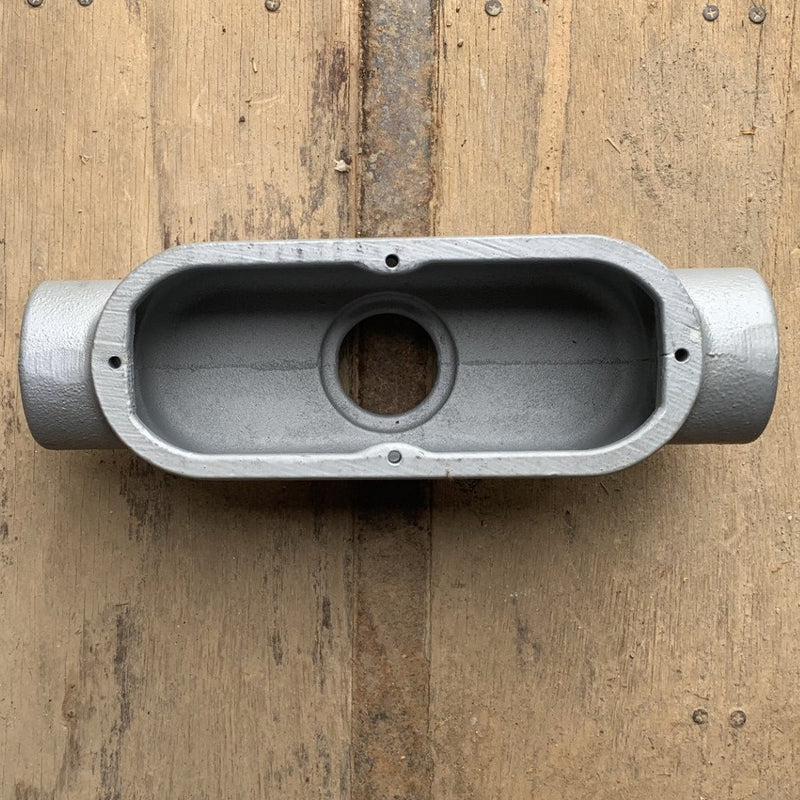

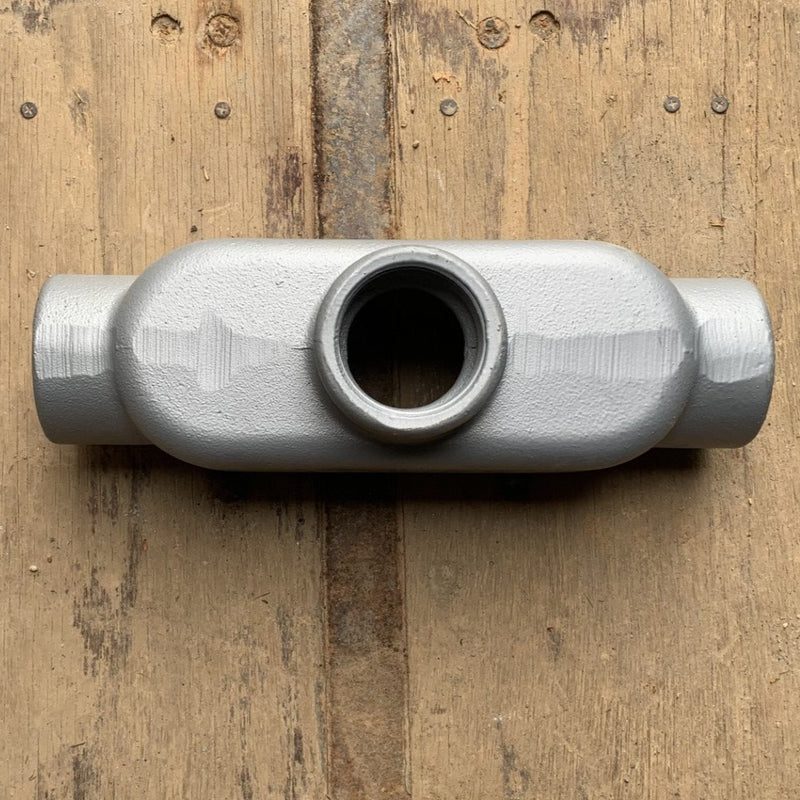

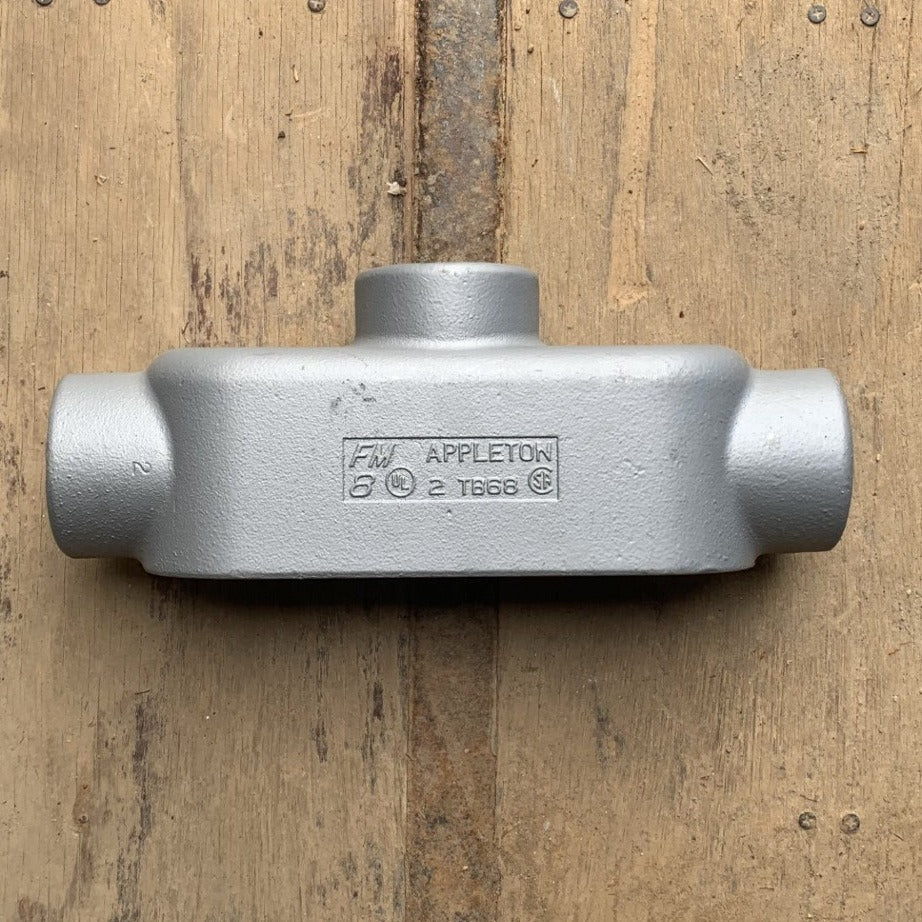

The Appleton TB68 2" Conduit Body is a robust and versatile Form 8 conduit outlet body designed for use in commercial, industrial, and hazardous or wet locations. Measuring 12.38 inches in length and 4.81 inches in height, this conduit body features three 2-inch threaded hubs in a tee configuration, with a back access opening for easy installation and maintenance. Constructed from durable Grayloy-Iron with a triple-coat finish consisting of zinc electroplating, chromate, and epoxy powder coating in gray, the TB68 is UL 514A/B and CSA C22.2 approved, and complies with NEC, CEC, and NEMA FB-1 standards. With a capacity of 105 cubic inches, this conduit body can accommodate up to (3) 4/0 AWG or (3) 3/0 AWG wires. The TB68 is equipped with a neoprene gasket and stainless steel cover screws for a secure and weather-tight seal, making it suitable for Class I Division 2 hazardous locations. This conduit body serves multiple purposes, including acting as a pulling fitting, making bends in conduit systems, providing openings for splicing, connecting and changing the direction of conduit runs, allowing connections for branch runs, and permitting access to conductors.

Shipping Weight: 12.0 lb
