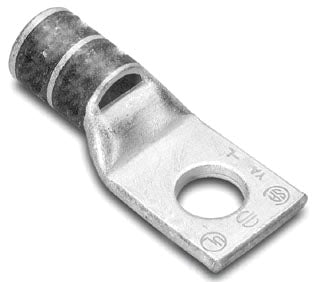

Burndy YA25LNT14 Copper Compression Lug, 10 Per Box - New Surplus
Description:
Pad Size:
0.48 Inch W x 0.12 Inch Thk
Number of Pad Holes:
1
Stud Size:
1/4 Inch
Color:
Pink
Die Index:
12
Material:
Electro-Tin Plated Copper
Overall Length:
1.93 Inch
Approval:
UL, CSA
Additional Information:
RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow
Catalog Number:
YA25LNT14
Brand Name:
HYLUG[TM]
Model:
YA-L-NT
Voltage Rating:
600 V to 35 kV
Conductor Material:
Copper
Conductor Size:
1/0 AWG Solid/Stranded (Code)
Barrel Type:
Short, Skived, Standard, Straight
Barrel Length:
0.88 Inch
CATALOG DESCRIPTION:
1/0 AWG CU, ONE HOLE, 1/4 STANDARD BARREL, INSPECTION WINDOW, NARROW TONGUE INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX.
Category:
Large Terminals & Connectors
Full Technical Description:
Electro-Tin Plated Copper Material; Pink Color; 1.93 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 12 Die Index; 0.48 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow; YA-L-NT Model
Manufacturer:
Burndy Products
Product Description:
Burndy YA25LNT14 1/0AWG TERMINAL LUG
Proposition 65 Warning (CA):
Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Sub-Category:
Compression Cable Lug
UPC 12 Digit:
781810282076
Sold out
