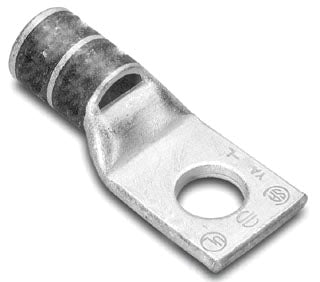

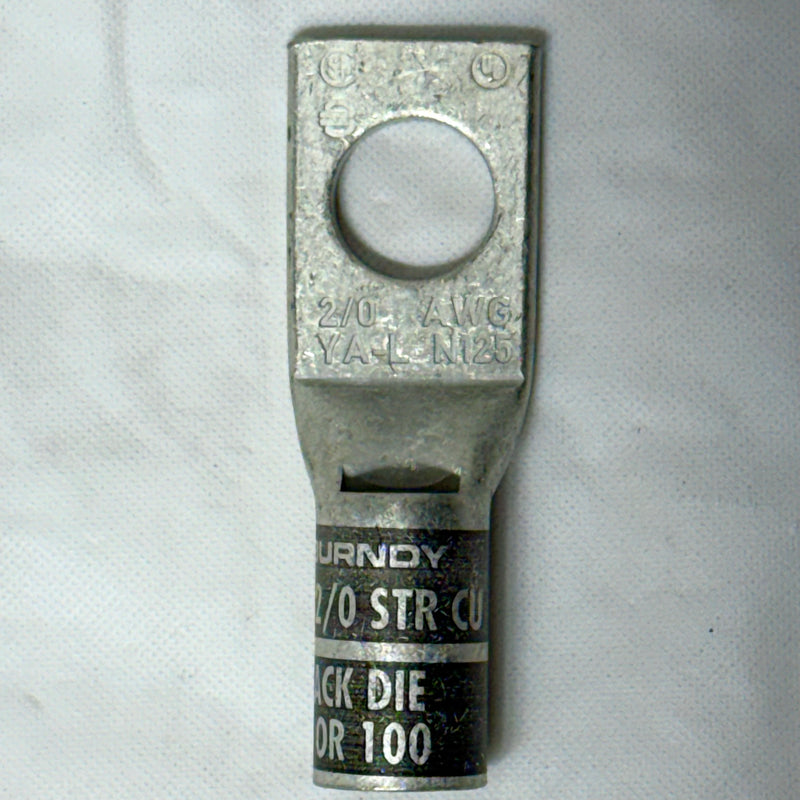

Burndy YA26L6BOX Copper Compression Lug

Burndy YA26L6BOX

Reconditioned

90-Day Operational Warranty

Out of stock

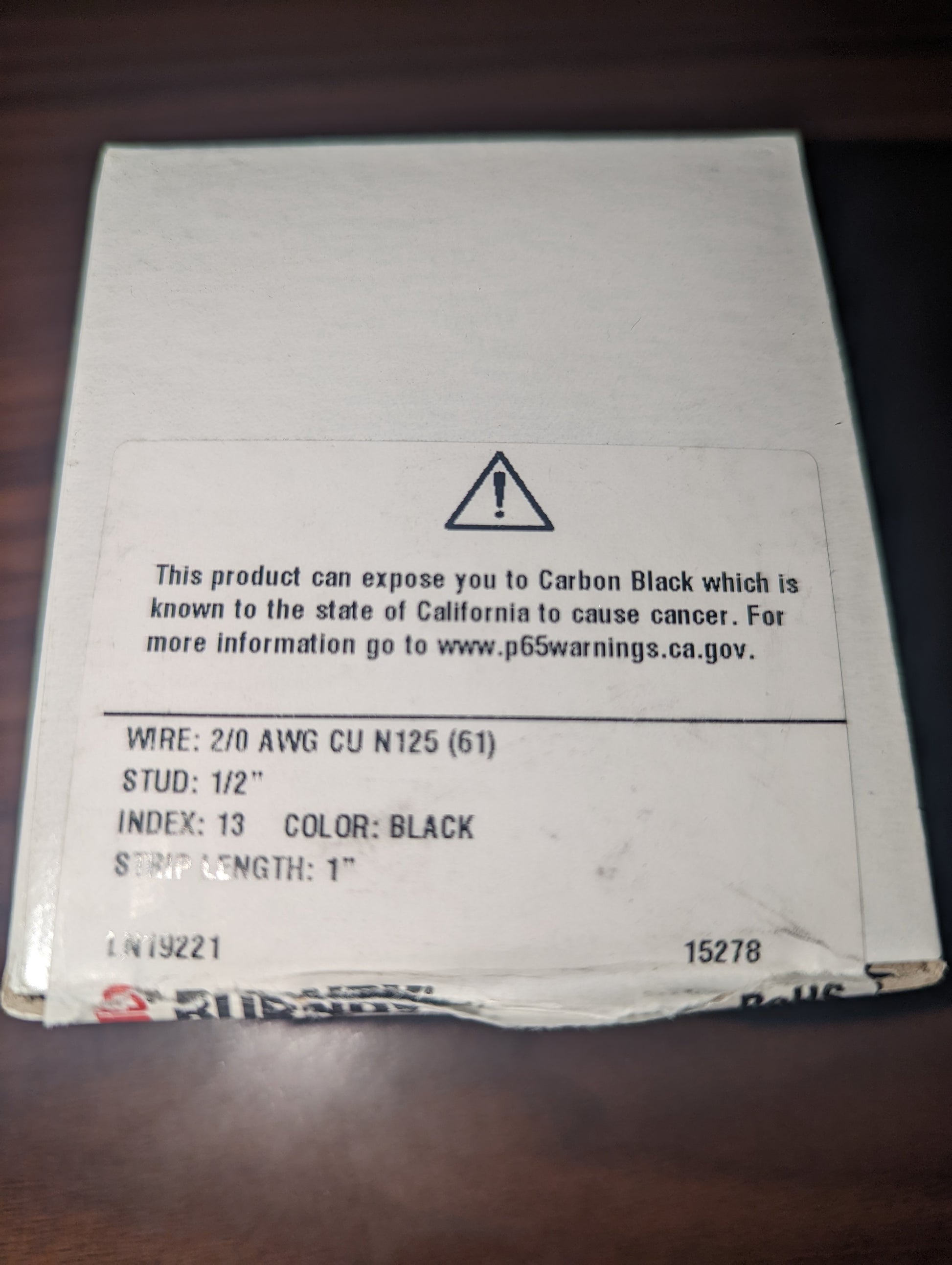

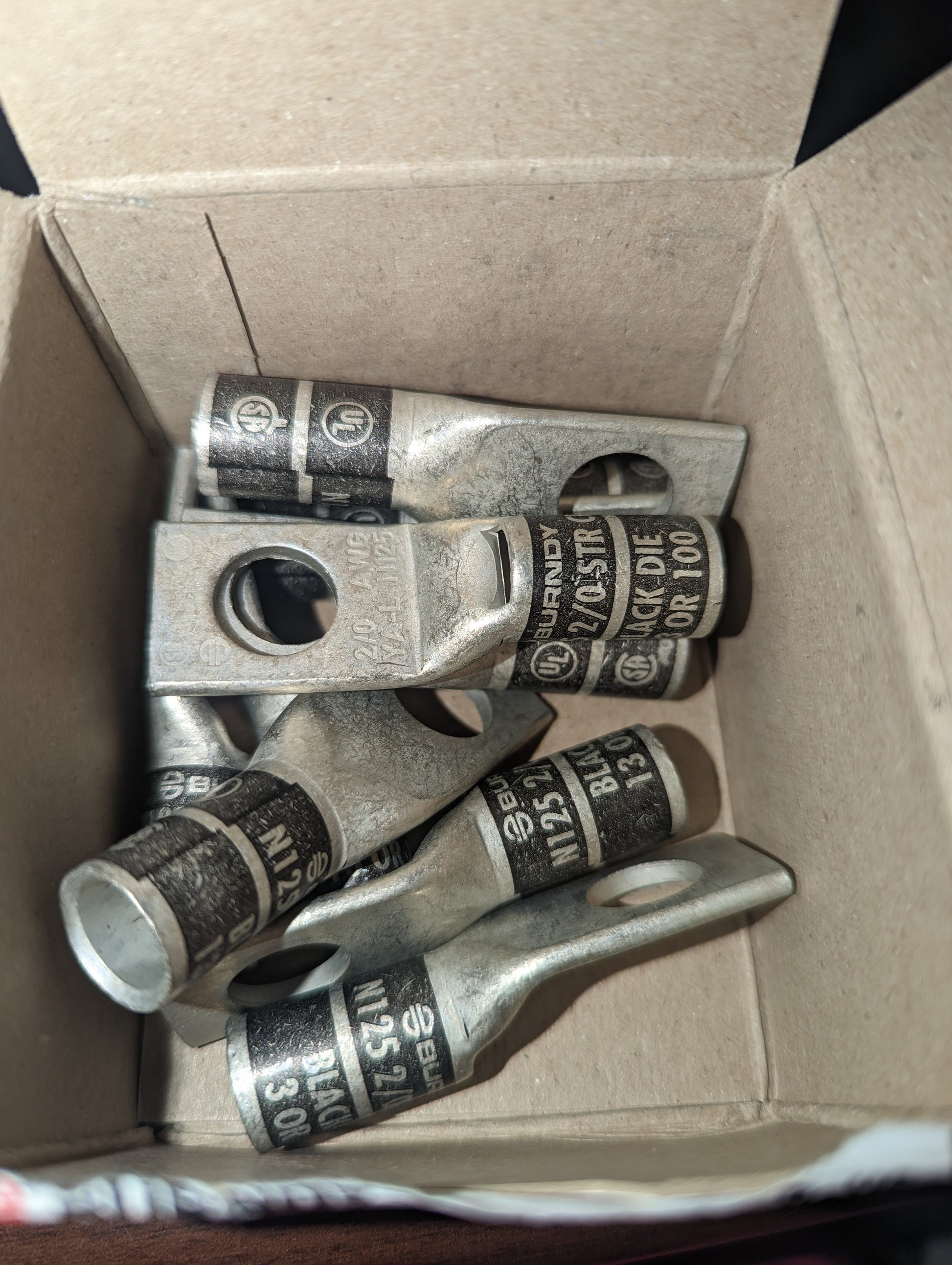

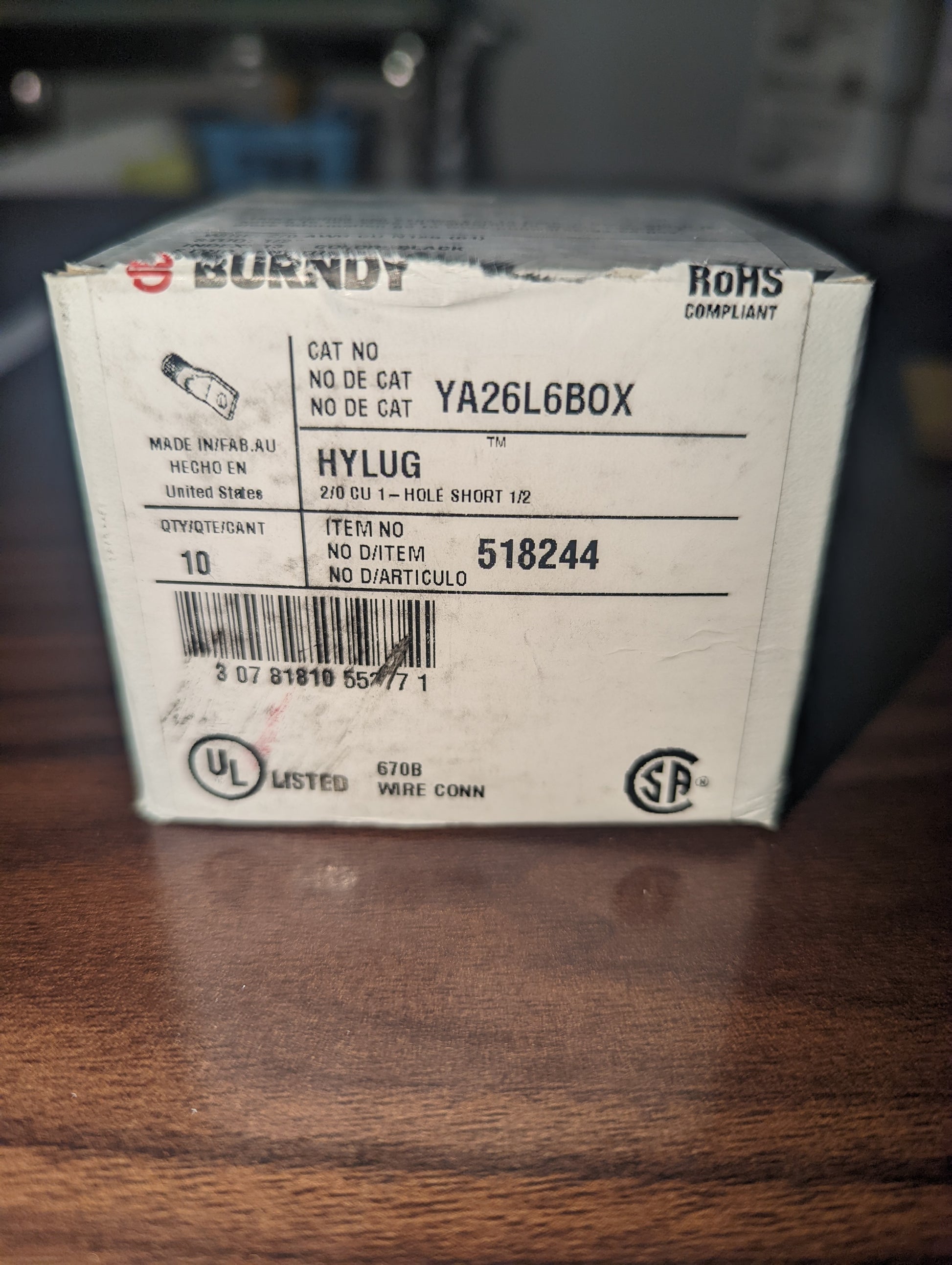

Burndy YA26L6BOX Copper Compression Lug, 10 Per Box - New Surplus

Description:

Pad Size:

 0.83 Inch Width x 0.12 Inch Thickness

Number of Pad Holes:

 1

Stud Size:

 1/2 Inch

Color:

 Black

Die Index:

 13

Material:

 Electro Tin Plated Copper

Overall Length:

 2.44 Inch

Approval:

 UL, CSA

Additional Information:

 RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1 Inch; Temperature Rating 90 Deg C; With Inspection Window

Catalog Number:

 YA26L6BOX

Brand Name:

 HYLUG[TM], HYDENT[TM]

Model:

 YA-L

Voltage Rating:

 35 Kilovolt

Conductor Material:

 Copper

Conductor Size:

 2/0 AWG Stranded (Code), 125 (Navy)

Barrel Type:

 Standard, Straight, Non-Insulated

Barrel Length:

 0.94 Inch

CATALOG DESCRIPTION:

 2/0 AWG CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.

Category:

 Large Terminals & Connectors

Full Technical Description:

 Electro Tin Plated Copper Material; Black Color; 2.44 Inch Overall Length; 0.94 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2/0 AWG Stranded (Code), 125 (Navy) Conductor Size; 1/2 Inch Stud Size; 13 Die Index; 0.83 Inch Width X 0.12 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model

Manufacturer:

 Burndy PRODUCTS

Product Description:

 Burndy YA26L6BOX 2/0AWG 1-HOLE LUG

Sub-Category:

 Compression Cable Lug

UPC 12 Digit:

 781810553770

Product Sheet

Shipping Weight: 5.5 lb
