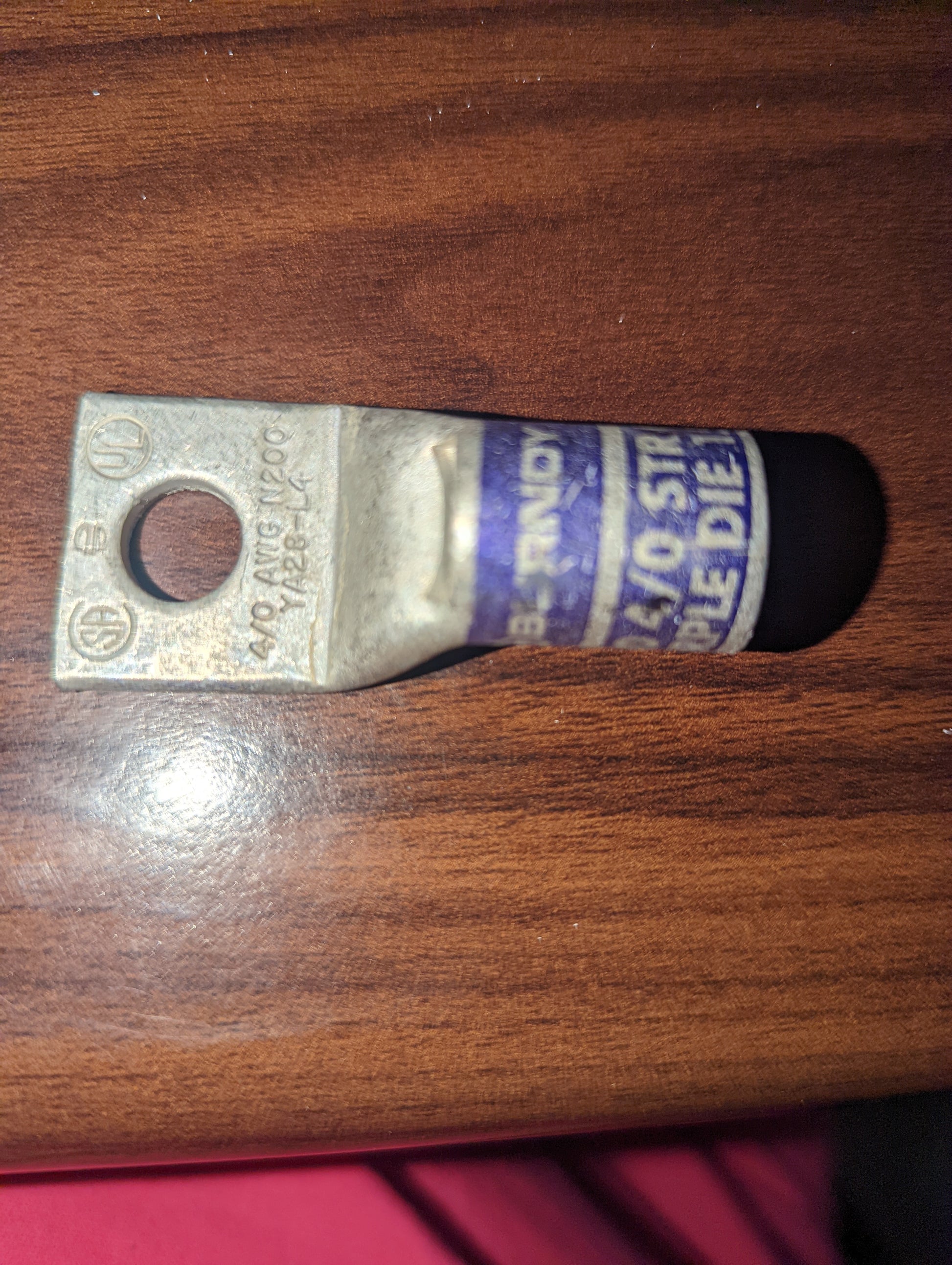

Burndy YA28L4BOX Copper Compression Lug

Burndy YA28L4BOX

Reconditioned

1 Year Operational Warranty

Out of stock

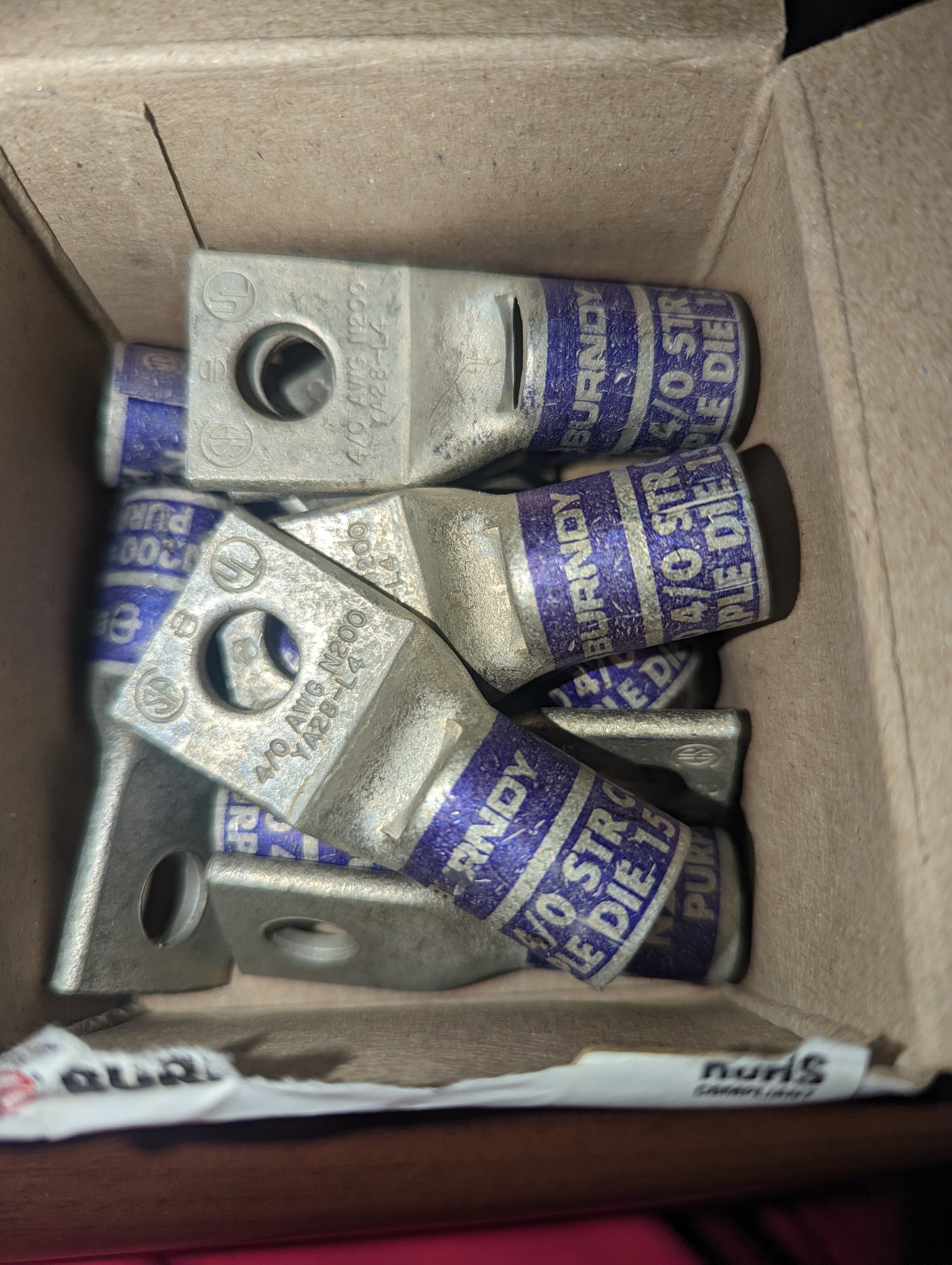

Burndy YA28L4BOX Copper Compression Lug, 10 Per Box - New Surplus

Description:

Pad Size:

 1.02 Inch Width x 0.14 Inch Thickness

Number of Pad Holes:

 1

Stud Size:

 3/8 Inch

Color:

 Purple

Die Index:

 15

Material:

 Electro Tin Plated Copper

Overall Length:

 2.21 Inch

Approval:

 UL, CSA

Additional Information:

 RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-1/8 Inch; Temperature Rating 90 Deg C; With Inspection Window

Catalog Number:

 YA28L4BOX

Brand Name:

 HYLUG[TM], HYDENT[TM]

Model:

 YA-L

Voltage Rating:

 35 Kilovolt

Conductor Material:

 Copper

Conductor Size:

 4/0 AWG Stranded (Code), 200 (Navy)

Barrel Type:

 Standard, Straight, Non-Insulated

Barrel Length:

 0.88 Inch

CATALOG DESCRIPTION:

 4/0 AWG CU, ONE HOLE, 3/8 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.

Full Technical Description:

 Electro Tin Plated Copper Material; Purple Color; 2.21 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 4/0 AWG Stranded (Code), 200 (Navy) Conductor Size; 3/8 Inch Stud Size; 15 Die Index; 1.02 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-1/8 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model

Manufacturer:

 Burndy PRODUCTS

Product Description:

 Burndy YA28L4BOX 4/0AWG 1-HOLE LUG

Sub-Category:

 Compression Cable Lug

UPC 12 Digit:

 781810554258

Product Sheet

Shipping Weight: 5.5 lb
