Burndy YAV10T4BOX Copper Compression Lug, Box of 50 - New Surplus
Description:
Approval:
UL, CSA
Additional Information:
RoHS Compatible; Dimension 1.17 Inch L x 0.55 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch
Catalog Number:
YAV10T4BOX
Brand Name:
HYLUG[TM]
Model:
YAV BOX
Type:
Beveled, Heavy Duty
Minimum Conductor Size:
14 AWG Stranded, 12 AWG Solid/Stranded
Maximum Conductor Size:
10 AWG Solid/Stranded
Insulation Type:
Non-Insulated
Stud Size:
3/8 Inch
CATALOG DESCRIPTION:

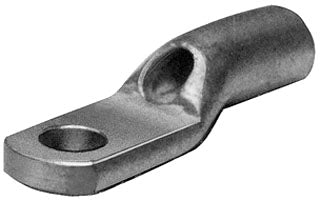

COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, 12-10 AWG, 3/8" STUD, SHORT BARREL, TIN PLATED.
Category:
Large Terminals & Connectors
Full Technical Description:
Beveled, Heavy Duty Type; 14 AWG Stranded, 12 AWG Solid/Stranded min. Conductor Size; 10 AWG Solid/Stranded Max. Conductor Size; UL, CSA Approval; 3/8 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 1.17 Inch L X 0.55 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 7/16 Inch; YAV BOX Model
Manufacturer:
Burndy Products
Product Description:
Burndy YAV10T4BOX 12-10 RING LUG
Proposition 65 Warning (CA):
Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Sub-Category:
Ring Lug
UPC 12 Digit:
781810541807
Product Sheet
Sold out
