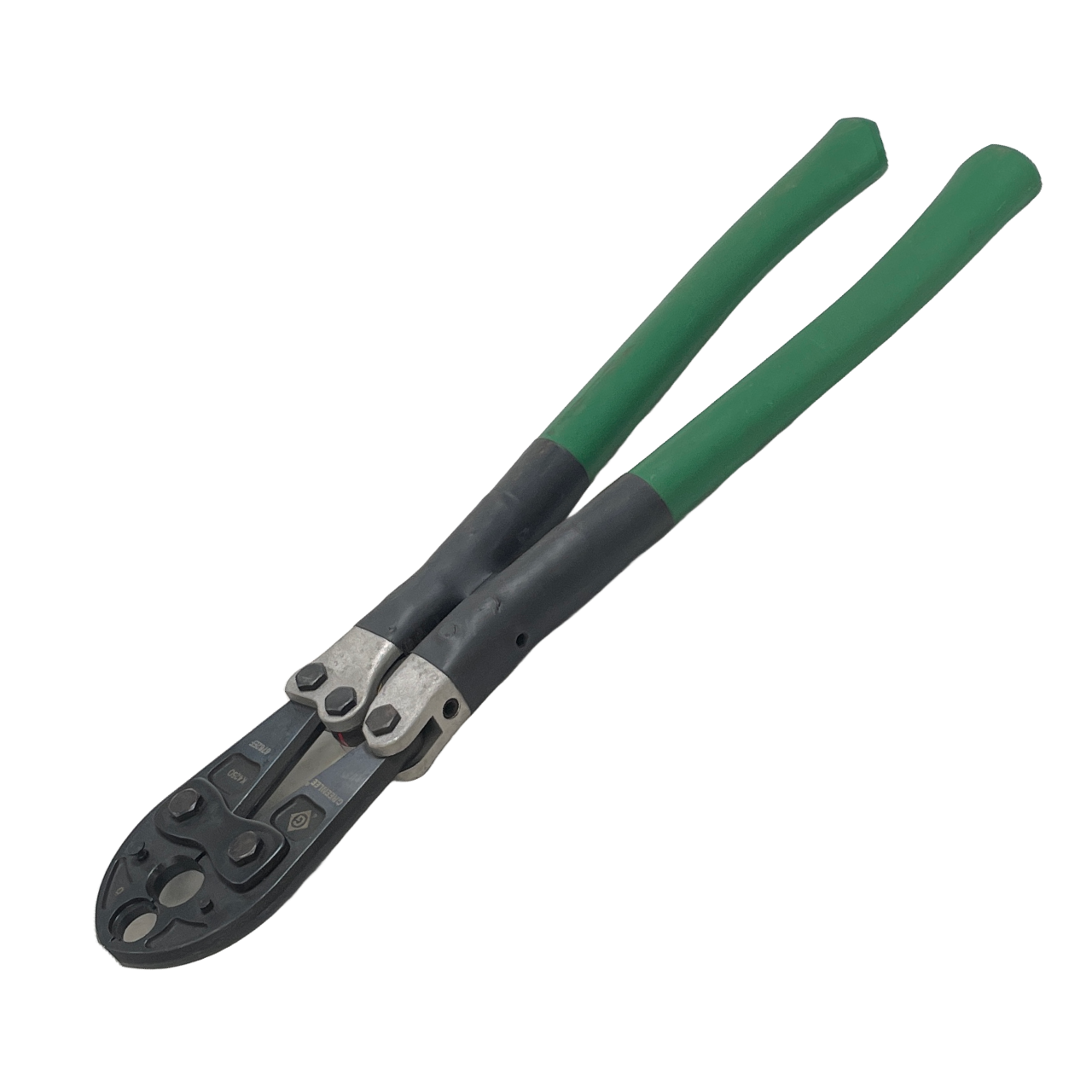

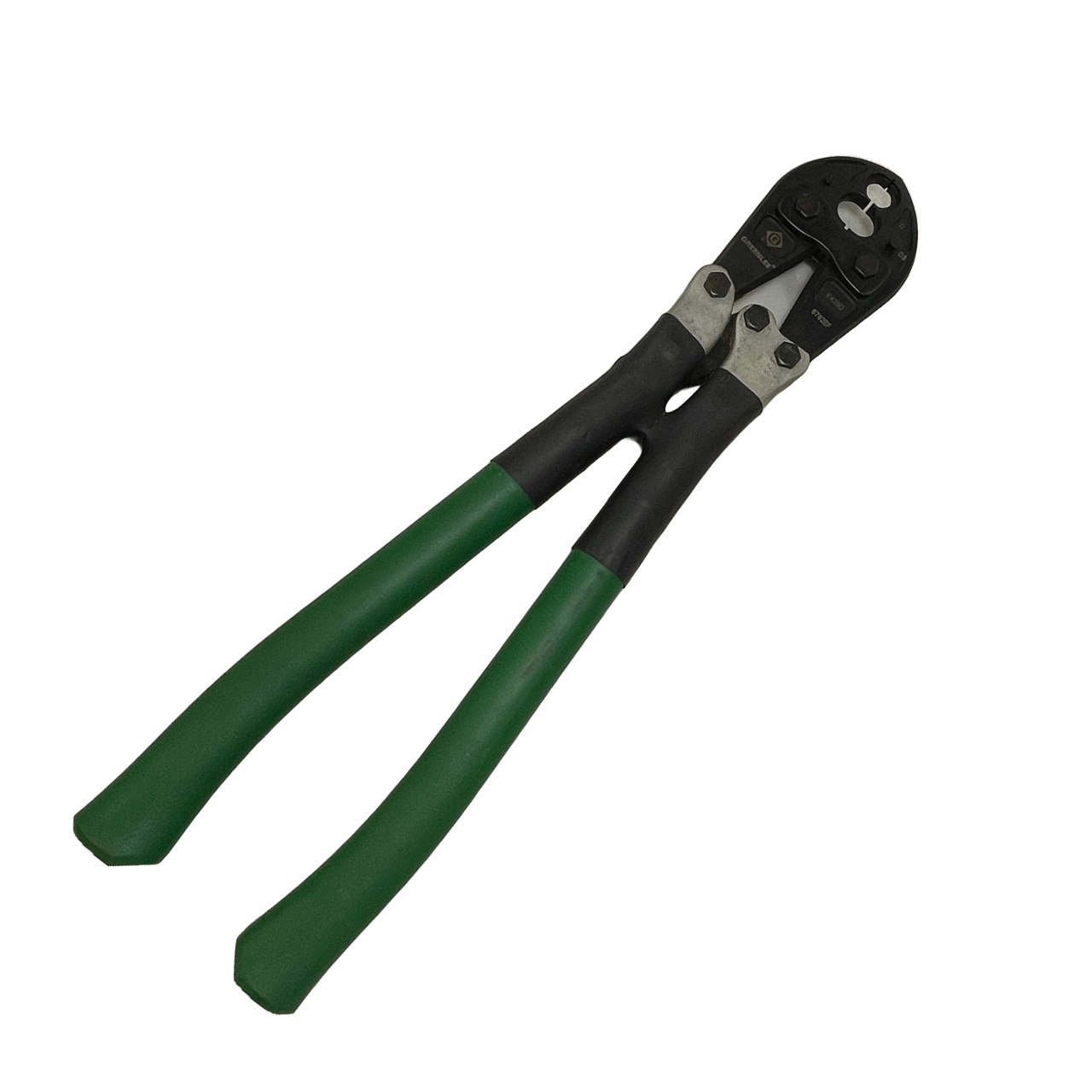

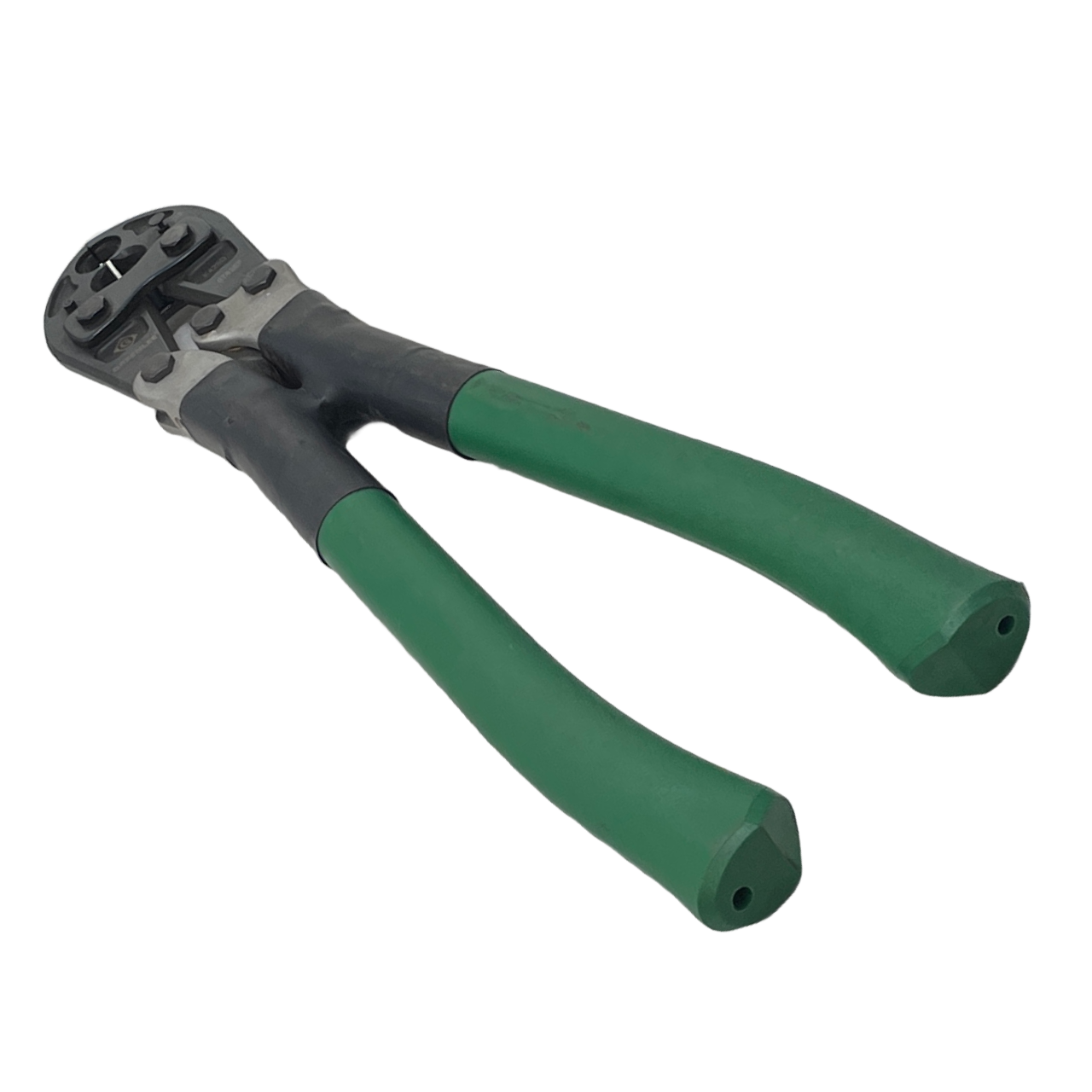

Greenlee K425O

Mechanical Crimping Tool

Reconditioned with One (1) Year Warranty

The K425O Mechanical Crimping Tools are hand-operated tools that use permanent die grooves and/or insertable W-type dies. These tools have two permanent die grooves for distribution tap connectors. The die inserts snap into a permanent groove easily with one hand and are secured with the spring-loaded, positive lock, die retaining buttons.

Specifications

Crimp Force Developed ..................... 9,000 lb (4,091 kg)
Weight (tool only)........................................... 6 lb (2.7 kg)

For use on:
• Copper taps from #10 solid to #2/0 stranded
• Aluminum/ACSR taps from #14 solid to #4/0 ACSR
• Stirrups from #6 AWG to #4/0 ACSR
• Copper and aluminum code conductor connectors
from #6 AWG to #4/0 stranded
• Overhead full tension deadend, full and non-tension
splices and terminals from #10 stranded to #4/0
ACSR
• 5/8" and .840" service entrance sleeves

User Manual

Shipping Weight: 9.0 lb
