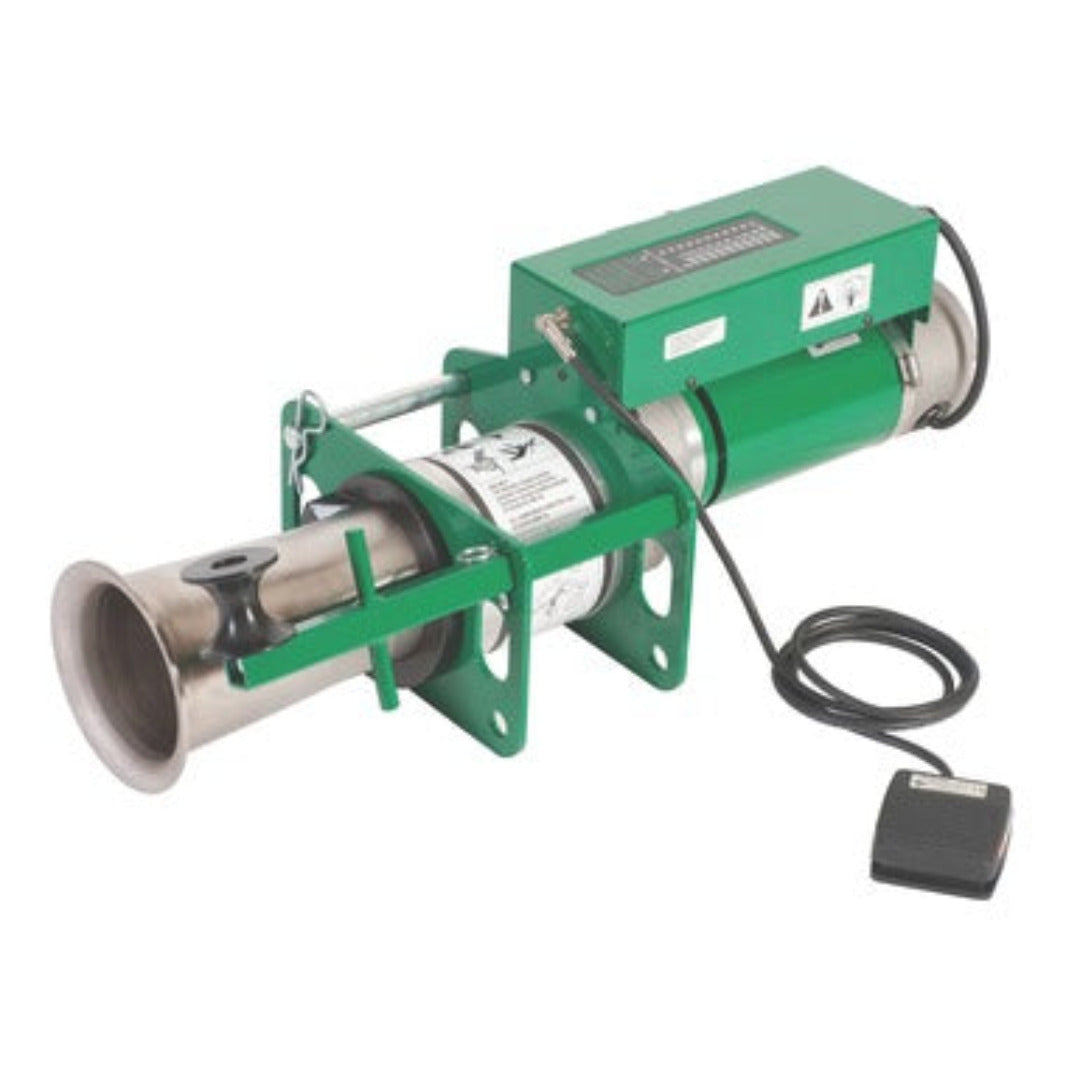

Greenlee UT10 Ultra Tugger Cable Puller - Reconditioned with One Year Warranty
Description:

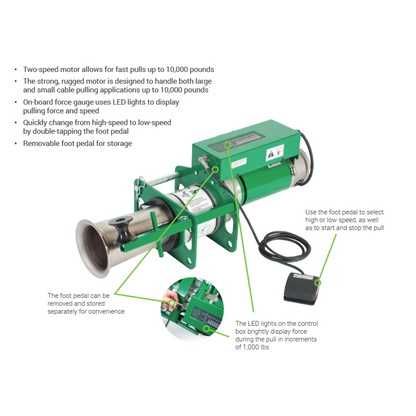

The Ultra Tugger 10,000-pound puller is a powerful and versatile tool designed for efficient electrical cable pulling. With two speed settings, the puller can easily shift from high to low speed using a simple double-tap motion on the foot pedal. The high-speed setting can pull up to 16 feet per minute for loads up to 4,000 pounds, while the low-speed setting can handle 8,000 pounds at a rate of 9 feet per minute. The Ultra Tugger's peak capacity reaches an impressive 10,000 pounds, pulling at a rate of 6 feet per minute.
This 115-volt puller is designed to work with a 7/8" diameter, double-braided, polyester composite rope with a minimum average breaking strength of 143 kN (32,000 lb). The puller assembly is specifically designed for electrical cable pulling applications and can operate continuously with loads up to 6,500 pounds (28.9 kN). For loads between 6,500 and 8,000 pounds (28.9-35.6 kN), the puller should be operated in cycles of 15 minutes on and 15 minutes off. The momentary peak capacity of 10,000 pounds (44.5 kN) should only be used for short durations. The Ultra Tugger 10,000-pound puller has a 20-amp rating and boasts a no-load low speed of 9 feet per minute.
Sold out
