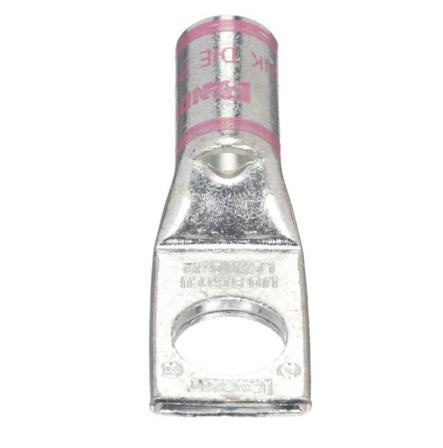

PANDUIT Pan-Lug™ LCA1/0-12-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 0.5" Stud, 10 PER BOX, NEW SURPLUS
Specifications
Product Type
Copper Compression Connectors - Lugs
Base Material
Copper
Copper Code Conductor Size (AWG)
1/0
Sub Brand
Pan-Lug™
Stud Hole Size (In.)
1/2
Stud Hole Size (mm)
12.7
Barrel Type
Standard Barrel Length with Inspection Window
Barrel Length (In.)
0.94
Barrel Length (mm)
23.9
Tongue Type
Standard
Tongue Width (In.)
0.8
Tongue Width (mm)
20.3
Tongue Angle
Straight
Tongue Thickness (In.)
0.12
Tongue Thickness (mm)
3
Overall Length (In.)
2.31
Overall Length (mm)
58.7
Finish/Coating
tin-plated
Standards Met
UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13
UL Temperature Rating (°C)
90
Maximum Voltage (kV)
35
Color Code
Pink
Panduit Die Index Number
P42
Burndy Die Index Number
12
T & B Die Index Number
42
Wire Strip Length (In.)
1
Wire Strip Length (mm)
25.4
Part Features
Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
