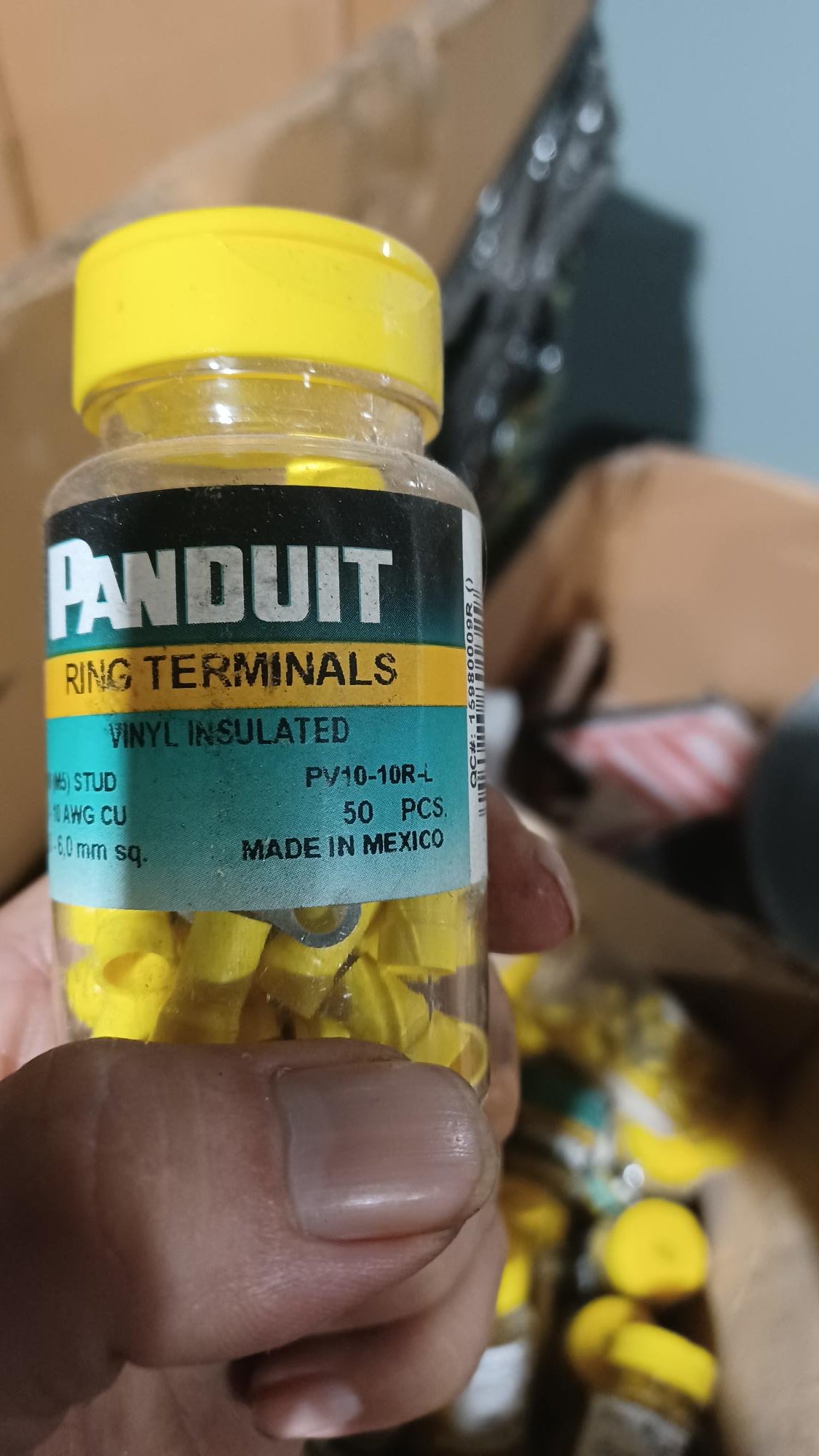

Panduit PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50 New Surplus
Ready to Ship Next Business Day

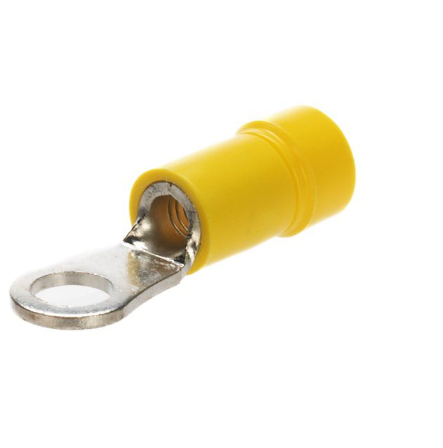

The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extended barrel insulation provides protection and strain relief when crimped.
Specifications
Stud Hole Size (In.)
#10
Stud Hole Size (mm)
5
Stud Size
#10
Insulation Material
Vinyl
Maximum Copper Conductor Size (AWG)
#10
Maximum Wire Size (AWG)
#10
Minimum Wire Size (AWG)
#12
Minimum Copper Conductor Size (AWG)
#12
Maximum Metric Conductor Size (mm²)
6
Minimum Metric Conductor Size (mm²)
4
Wire Strip Length (In.)
5/16
Wire Strip Length (mm)
7.9
Standards Met
cULus Listed 587H E52164, CSA Certified LR31212
Base Material
Copper
Maximum Voltage (V)
600
Maximum Voltage (kV)
0.6
Finish/Coating
Tin-Plated
Color Code
Yellow
Barrel Type
Funnel
Flammability Rating
UL94V-0
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221
Maximum Wire Insulation Diameter (In.)
0.23
Maximum Wire Insulation Diameter (mm)
5.8
Seam Type
Brazed
Sub Brand
Pan-Term®
Overall Length (In.)
1.05
Overall Length (mm)
26.7
Overall Width (In.)
0.31
Overall Width (mm)
7.9
Tongue Thickness (In.)
0.04
Tongue Thickness (mm)
1
Tongue Width (In.)
0.31
Tongue Width (mm)
7.9
Packaging Type
Bottle
Product Type
Ring Terminal
For Use With
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Part Features
• Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
